    Vac-Alert Safety Vac Release System | VA-2000-S

    Our Products: Pool Supplies > Pool Equipment Supplies > Pool Equipment Accessories
    SKU: VA-2000-S
    Weight: 7 lbs
    Units in Stock: 3
    #VA-2000-S Vac-Alert Safety Vac Release System
    List Price: $699.99
    Price: $648.90
    You Save: $51.09 (7%)
    Add to Wishlist Add to Wishlist
    Vac-Alert Safety Vac Release System | VA-2000-S
    Vac-Alert Safety Vac Release System | VA-2000-S
    Previous Item Previous Item   Next Item Next Item
    Product Details

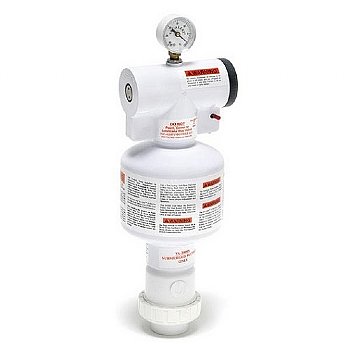

    #VA-2000-S Vac-Alert Safety Vac Release System
    The Vac-Alert Model VA-2000S is a Safety Vacuum Release System (SVRS) designed for submerged suction applications. Submerged suction in this case applies to all applications where the circulating pump suction is below the level of the pool water surface. This unit incorporates a 0.375” diameter orifice opening installed below the surge tube section. This orifice opening is sized to provide a limited amount of pump start-up surge protection, while at the same time allowing enough air into the piping system to insure dissipation of the dynamic suction force caused by the circulating pump.

    The Model VA-2000-S SVRS unit also utilizes a check valve assembly equipped with a 0.25 pound spring and a non-vented poppet (no poppet disc or hole through the poppet). This check valve assembly utilizes a light duty spring to minimize the sealing force of the check valve. The non-vented poppet insures that water from the circulating system, under a positive hydrostatic head condition, does not migrate up into the SVRS.

    SVRS: Safety Vacuum Release System
    Self-monitoring, non-electrical and low maintenance
    Easy to install within thirty minutes
    An installation DVD is included with every unit
    Long lasting design features moisture resistant PVC and stainless steel construction
    Simple adjustment and manual reset
    Meets all requirements of International Code Council
    Won't damage your pump when tripped
    3-year limited warranty ensures reliability
    Available On-Line Only
