S.R. Smith Aluminum Flange Mounting Kit | 75-209-5866

SKU: 75-209-5866
Weight: 3 lbs
Units in Stock: 2
#75-209-5866 S.R. Smith Aluminum Flange Anchor Mounting Kit
In-Store Price: $229.99
Price: $179.50
S.R. Smith Aluminum Flange Mounting Kit | 75-209-5866
S.R. Smith Aluminum Flange Mounting Kit | 75-209-5866
Product Details
S.R. Smith Rogue2
#75-209-5866 S.R. Smith Aluminum Flange Anchor Mounting Kit

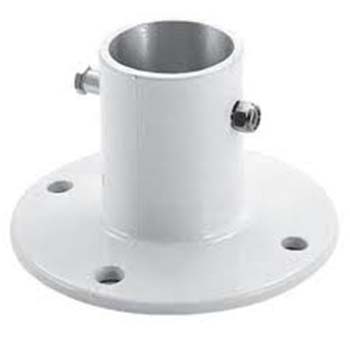

The S.R. Smith machined aluminum Anchor Flange provides a suitable mounting point when surface mounting light to moderate duty residential and light duty commercial equipment whose outer diameter tubing is 1.90".

The base is symmetrically pre-drilled to accept four mounting bolts of a diameter of 1/4" (.25"/6.35mm) (not included). In addition, either side of the mounting tube is pre-drilled at approximately 1" (25.4mm) below the top of the mounting tube. Mounting of equipment is accomplished by properly aligning these holes with the matching holes in equipment and securing with a 2.75" (69.9mm) long bolt. This carbon steel bolt, a bushing, two washers and a lock nut (U.S. thread) are included with the anchor socket. Base diameter is 5 3/16".
S.R. Smith Aluminum Deck-Mounted Anchor Flange 75-209-5866

Features:
• Suitable for use in surface (deck) mounting a variety of equipment including:
• Slides, Ladders, Handrails, Stair Rails
• For surface-mounting equipment with 1.90" OD tubing
• Requires four 1/4" mounting bolts, not included
• On light to moderate duty residential and light duty commercial installations in most geographic areas.

Specifications:
• Includes: 4 Flanges w/ Hardware
• Outer Diameter Tubing: 1.90" (48.3mm)
• Base Diameter is: 5 3/16"
