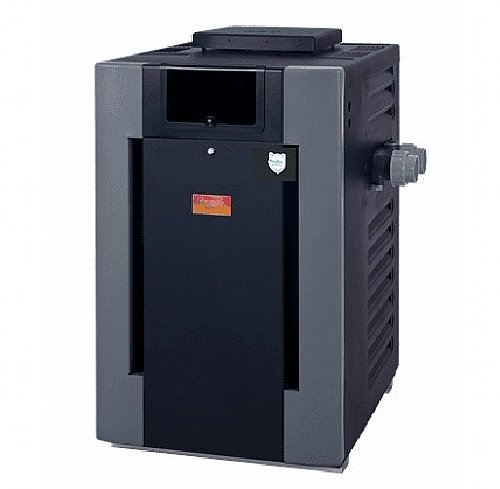

Raypak 266 Digital Cupro-Nickel Pool Heater, 5000-7000 Ft.| P-R266A-EP-X #61

SKU: 014963
Weight: 210 lbs
#014963 Raypak 266 Digital Cupro-Nickel, Pool and Spa Heater, Propane
Price: $3,359.00
Raypak 266 Digital Cupro-Nickel Pool Heater, 5000-7000 Ft.| P-R266A-EP-X #61
Raypak 266 Digital Cupro-Nickel Pool Heater, 5000-7000 Ft.| P-R266A-EP-X #61
Product Details
Raypak 407 Digital LowNOx Heater 009243 | P-R407AL-EN-C #26
#014963 Raypak 266 Digital Cupro-Nickel Pool and Spa Heater
Propane,
High Altitude: 5000-7000 (feet) Elevation

Free Shipping!
Not for use in parts of California!

Available Models:
Raypak Part #014963 Model #P-R266A-EP-X #61
Rheem Part #014991
  Model #P-M266A-EP-X #61
Ruud    Part #015019  Model #P-D266A-EP-X #61


Cupro-nickel's major advantage over standard copper is that it's more tolerant of bad water chemistry and is more resistant to erosion thanks to a harder surface and a wall that is approximately 50% thicker. When you are unsure of your ability to maintain the pool or spa water chemistry a cupro-nickel heat exchanger is a cost-effective way to protect against premature failure.


PolyTuf Textured Powder Coating
The Raypak
266 Digital, Cupro-Nickel High Altitude gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service

Wind-Resistant Design
No need for fans to combat drafting problems under normal conditions. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed, it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc

Control Options
These
266 Digital, Cupro-Nickel High Altitude units are available with two different control designs to meet your requirement. They are available with digital electronic ignition, or as a millivolt design. The digital system (pictured) requires external power (120VAC or 240VAC) and generates a pilot only when there is a call for heat. It provides simple setup and easy programming, as well as easy-to-understand diagnostics and simple connections to remote controls. The millivolt ignition system does not require external power. It generates its' own current internally, with a small thermocouple driven by the constant pilot. The millivolt ignition system is not available in California for natural gas units. See Digital vs Millivolt for more details

Polymer Headers
Polymer headers prevent rust stains from harming your pool’s surface, giving you years of trouble-free swimming pleasure

All-Copper-Fin-Tube Heat Exchanger
The
266 Digital, Cupro-Nickel fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained

Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Raypak heaters with the polymer headers. This allows for a completely nonferrous waterway, leaving your pool truly rust-free

CPVC 2" Water Connections
Standard with every Raypak
266 Digital, Cupro-Nickel heater is a set of 2" slip-fit CPVC water connections to make your installation secure and effortless

Condensation Protection
The Unitherm Governor inside the header helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life

High Flow Rates
The Raypak 266 gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 GPM

Burner Tray
Every 266 burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing

Fire Tile
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks

Fuel-Efficient
Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards

www.raypak.com
Raypak Digital Pool & Spa Heaters Brochure
