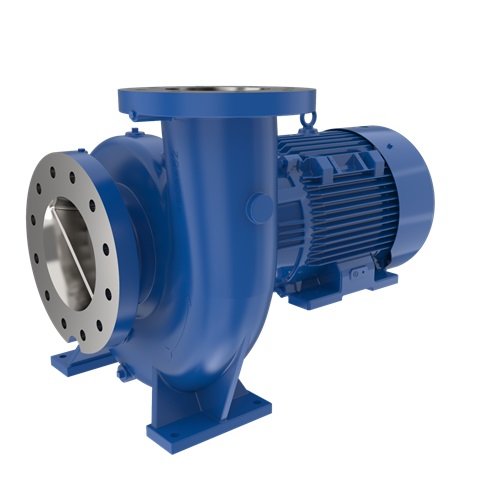

#3801-15HP-900GPM Pentair Aurora 3801 Series, Commercial Pool Pump, Three Phase, 208-230/460V 254JM Frame, TEFC Enclosure 5 Inch x 6 Inch x 9.5 Inch End Suction
Model #6x6x9.5A 3800 CC 1800 CL
Features:
AURORA 3800 SERIES Single Stage End Suction Pumps
Capacities to 4200 gpm (954 m3/hr)
Heads to 520 feet (158 meters)
Temperatures to 300°F (149°C)
Liquid handling requirements are much more involved than they were years ago. The variety of liquids being handled has increased along
with temperatures and pressures. Today's installations demand quiet, smooth-running pumps with long life. Aurora's 90 years of experience
with design, sales, and manufacturing of centrifugal pumps has led to the 3800 Series. These modern pumps with a clean, straightforward
design were developed with maximum interchangeability in mind. Aurora's highly reliable 3800 pumps offer an economical solution to
your liquid handling problems.
Standard Features
Offered in two models:
3801 Close coupled
3804 Flexible coupled-frame mounted
316 Stainless Steel impeller
316 SST shaft sleeve
Double volute on 4 Inch discharge and larger to reduce bearing loads
4 Power frame sizes
Casing feet for easy back pullout
Regreaseable bearings (3804 only)
Optional Features
316 SST shaft
Drip rim base
Drip pan (3804 only)
Flush lines
Epoxy coating
Several mechanical seal options
Case wear ring
