Paramount SDX VGB White Drain Cover | 004-192-2214-01

Our Products: Parts > Shop All Parts > Paramount Pool and Spa Systems
SKU: 004-192-2214-01
Weight: 1 lbs
Units in Stock: 5
#004-192-2214-01 Paramount SDX VGB White Drain Cover More details...
List Price: $49.99
Price: $39.50
Save to my Wish List Tell a friend
Paramount SDX VGB White Drain Cover | 004-192-2214-01
Paramount SDX VGB White Drain Cover | 004-192-2214-01

Product Details
Paramount SDX VGB White Drain Cover | 004-192-2214-01
#004-192-2214-01 Paramount SDX VGB White Drain Cover
Description:
Paramount SDX Covers VGB Compliant 2008 ASME A112.19.8-2007 Listed 1.5 FPS @ 200 GPM Single or Dual Inlets

Replaces Models:
#871010 American Products

PARAMOUNT’S PATENTED SDX HIGH FLOW SAFETY DRAIN
SDX is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A "Retro” version is available to bring existing suction outlet covers VGB compliant. SDX Retro fits existing plaster rings up to 10” in diameter.

SDX boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.

Features:
SDX Retrofit drain cover for concrete (plaster, gunite, pebble)
Retrofits to fit virtually all main drain sumps/frames up to 10"
Anti-vortex shield blocks contact from direct suction
Ribbed design acts as 60 "mini" drains
Secondary support plate protects the sump and fittings
Made from UV-resistant engineered polymer
No sump required

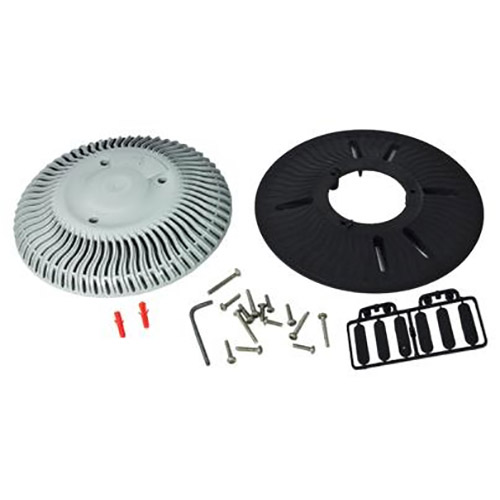

Includes cover, adapter plate and screw kit
Stainless steel security screws
SDX retro can be installed as a single cover with an SVRS installed on the suction line
ASME A112.19.8 – 2007 Listed
Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act


www.1paramount.com
